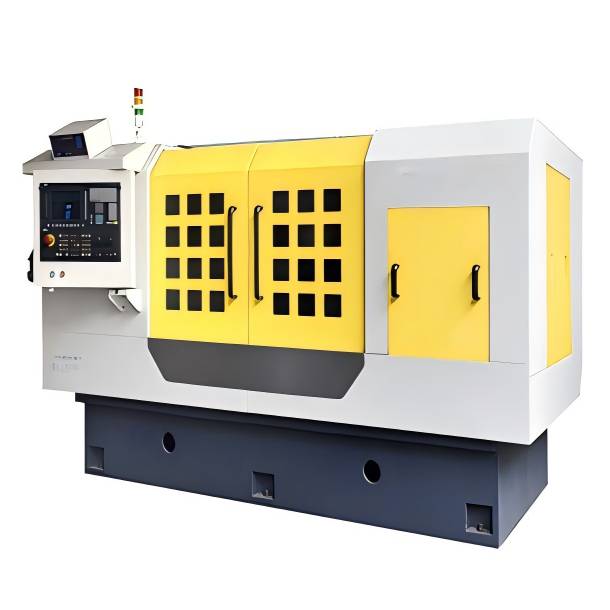

★ The machine tool is mainly used for cylindrical precision grinding of shaft parts.
★ This machine tool adopts cast iron bed, good rigidity, high strength and good shock absorption performance, which can well ensure the machining accuracy of the machine tool. One clamping can realize the functions of automatic grinding of the workpiece, automatic dressing of the grinding wheel, and automatic replenishment of the dressing amount of the grinding wheel.
name | unit | AWM1405 | AWM1410 | AWM1415 |
Grinding wheel plunge method | – | Straight cut in | Straight cut in | Straight cut in |
The spindle center is high | mm | 180 | 180 | 180 |
Large rotation diameter of the workpiece | mm | Φ350 | Φ350 | Φ350 |
Large grinding diameters | mm | Φ320 | Φ320 | Φ320 |
Large workpiece weight | kg | 150 | 150 | 150 |
Large workpiece lengths | mm | 500 | 1000 | 1500 |
Grinding wheel size (outer diameter× thickness × inner diameter) | mm | Φ450~Φ600×63×Φ305 | ||
Fast movement speed | m/my | 12 | 12 | 12 |
Fast movement speed | m/my | 12 | 12 | 12 |
rotate speed | rpm | 10~300 | 10~300 | 10~300 |
Top-of-the-line specs | — | MT-4 | MT-4 | MT-4 |
The sleeve has a large amount of movement | mm | 40 | 40 | 40 |
