Overview

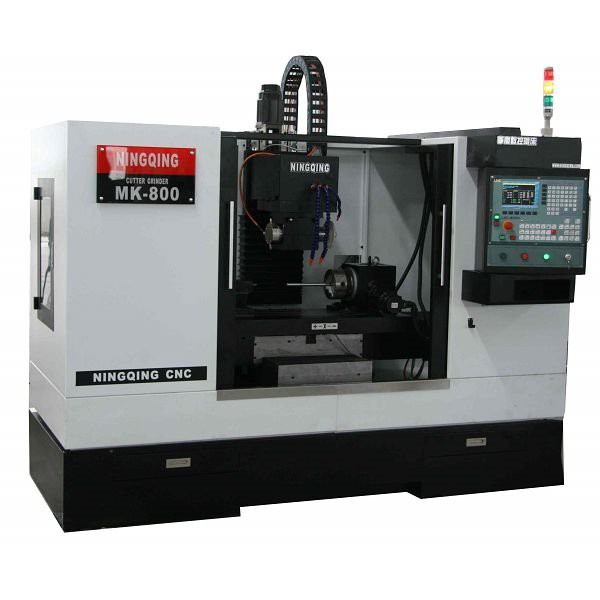

MK800 is a multi-functional four-axis CNC tool grinder, through the CNC program can automatically grind spiral groove surface and straight groove surface carbide milling cutter, molding milling cutter, etc.
Application:
● Profile Cutter regrinding
● Broach grinding
Machine Feature
● The grinding head can rotate at XZ plane and ZY plane to achieve the different angle.
● Adding the fourth axis linked to grind round tools.
● Using high speed CBN grinding wheel, so the grinding wearing is less. The wearing tools also can be compensated by system.
Machine Specification
| Item | Unit | Parameter |
| Table dimensions | mm | 300×1000 |
| T-slot dimension | mm | 3×14 |
| Max.weight of workpiece | Kg | 300 |
| Travel (X/Y/Z) | mm | 800×300×400 |
| Guideway Model | X/Y/Z linear guide rail | |
| Distance from spindle to table center | mm | 40-440 |
| Spindle speed | rpm | 18000 |
| Spindle motor | KW | 4 |
| Typical system | LNC from Taiwan | |
| Cutting feed rate | m/my | 0－15 |
| Rapid feed rate | m/my | 15 |
| Rotary angle in XZ plane | degree | ±90 |
| Rotary angle in XZY plane | degree | ±90 |
| Positioning accuracy | mm | 0.01 |
| Repeatability accuracy | mm | 0.005 |
| Machine weight | Kg | 3000 |
| Machine size | mm | 2600×1600×2400 |
| Power supply | KW | 10 |
