Overview

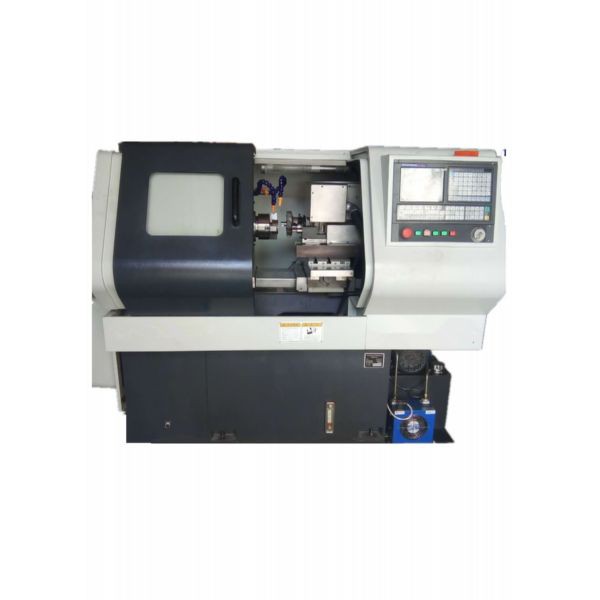

This is a compound CNC machining center, which can be used for many machining, like milling, turning, boring, drilling, tapping.
 |  |
Application
This machine can be used for multi-operation machining ,like ratchet spanner
 |  |
Machine Feature
● Special Purpose Machine for multifunctions
The machine is a special turning&milling compound CNC machine which is designed for complicate workpiece.
● Much higher production
The production will be much higher than conventional VMC machining.
● Higher machining precision
As the workpiece is clamped by hydraulic chuck and it is clamped only once, the machining precision will be higher than conventional VMC.
● Less tooling cost
● Less machine investment cost
Comparing with conventional VMC, the CNC compound turning&milling machine investment cost will be much less.
Standard Configuration
1. GSK controller
2. HIWIN/PMI guide rail
3. HIWIN/PMI ball screw
4. Automatic lubrication system
Machine Specification
| Swing dia. over bed | ⌀400mm |
| Swing dia. over slide | ⌀180mm |
| X/Z travel | 250/400 mm |
| Spindle through hole | ⌀40 mm |
| Spindle speed | 3000rpm |
| X/Z rapid speed | 8/10 m/my |
| X/Z motor torque | 4/6 N.m |
| Clamping | Pneumatic |
| Tools | Electric tool post and gang type |
| Tool shank size | 20*20 mm |
| Boring tool dia. | ⌀20mm |
| Fixture | Collet |
| X/Z positioning accuracy | 0.016/0.018 mm |
| X/Z repeatability accuracy | 0.006/0.006 mm |
| Tailstock quill dia. | ⌀52 travel：120 |
| Tailstock taper | MT4 |
| Roundness | 0.005 mm |
| Surface roughness（#45 steel） | Ra 1.6 |
| Total power consumption | 9.12 KVA |
| Overall dimensions | 2000*1250*1650 mm |
| Machine weight | 1250 kg |
