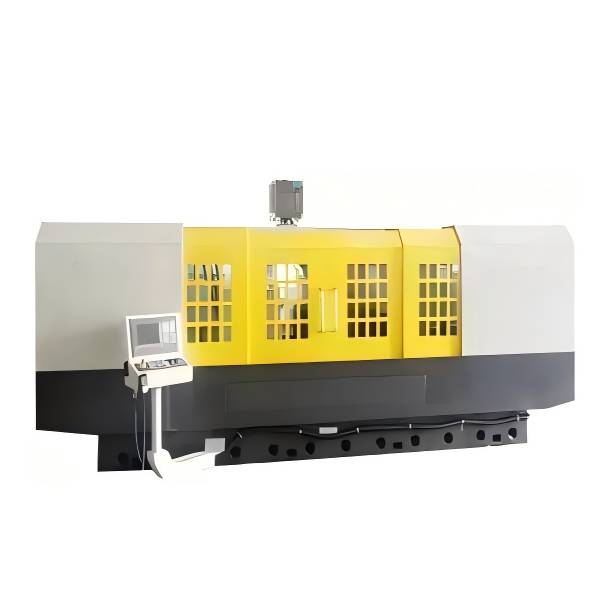

The grinding wheel spindle and workpiece spindle are all electric spindles, and the constant temperature cooling structure of the oil cooler is simple, the transmission chain is less, the precision is high, the A-axis spiral rising angle is fully automatic swing angle, and the encoder is closed-loop feedback.
name | unit | SWM1520 |
Grinding diameter | mm | Φ200 |
Grinding length | mm | 2000 |
Grindable thread helix angle rising angle | deg | ±25 |
High speed of grinding wheel spindle | rpm | 3000 |
Workpiece spindle speed | rpm | 0～100 |
Machine travel (X/Z) | mm | 350/2200 |
Rapid traverse speed (X/Z) | m/my | 8/10 / |
Machine size | mm | 6200X3300X3300 |
