Projects | unit | parameter | |
Processing capacity | Table turntable diameter | mm | Ø500 |
Grinding inner circle diameter | mm | Ø80 | |
Grinding the length of the inner circle | mm | 250 | |
C bearing load | kg | ≤750 | |
X-axis | X-axis travel | mm | 750 |
Z-axis | Z-axis travel | mm | 350 |
W-axis | Z-axis travel | mm | 350 |
Y-axis | Y-axis travel | mm | 550 |
Workpiece spindle (C-axis) | Torque motor rated torque | Nm | 300 |
The turntable is load-bearing | kg | ≤750 | |
Cylindrical grinding wheel spindle | High spindle speed | rpm | 4000 |
Internal grinding wheel spindle | High spindle speed | rpm | 18000 |
Machine specifications | Machine dimensions (LxWxH) | mm | 2600*2700*2500 |

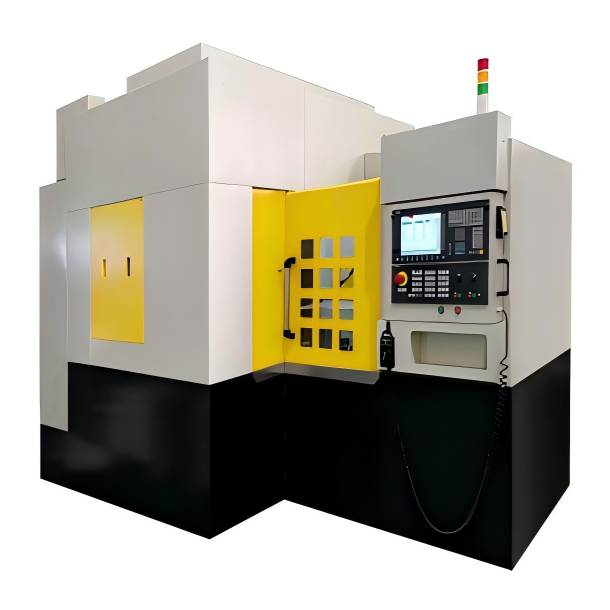

VMK324 Composite Grinding Machine
VMK324 series composite grinding machine is used for precision grinding of centering vise parts and turntable parts and RV reducer core key parts “cycloidal wheel, needle tooth shell, planet carrier”.
